Raw through the lens pictures.
No post processing applied.

VR LIGHT FIELD
DISPLAY ROADMAP

Q1 2020

Q1 2021

Q1 2022

2024

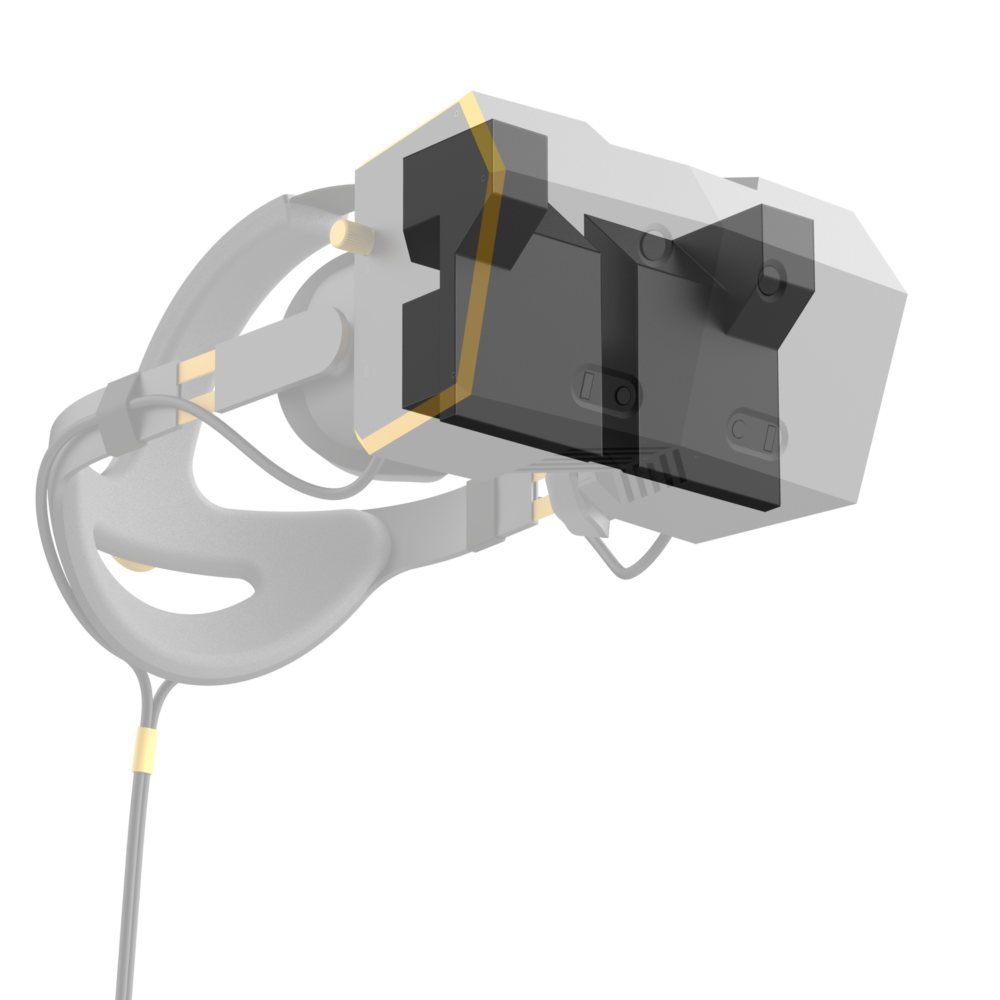

VR Evaluation kit
technical specifications

Per eye20232025+
Depth resolutionContinuousContinuous
Angular resolution at infinity45 px/° LF.45 px/° LF.
FoV (diagonal)100°
(Foveated LF.: 32°)
100°
(Foveated LF.: 36°)
Effective eyebox
(exit pupil)
13 mm
(7 mm)
16 mm
(10 mm)
Eye relief 17 ± 3 mm17 ± 3 mm
Colors~5 M~10 M
GPU loadFHD (equivalent)FHD (equivalent)
Frame rate160-240 Hz240 Hz
Sub-frame rate6.5 kHz8 kHz
