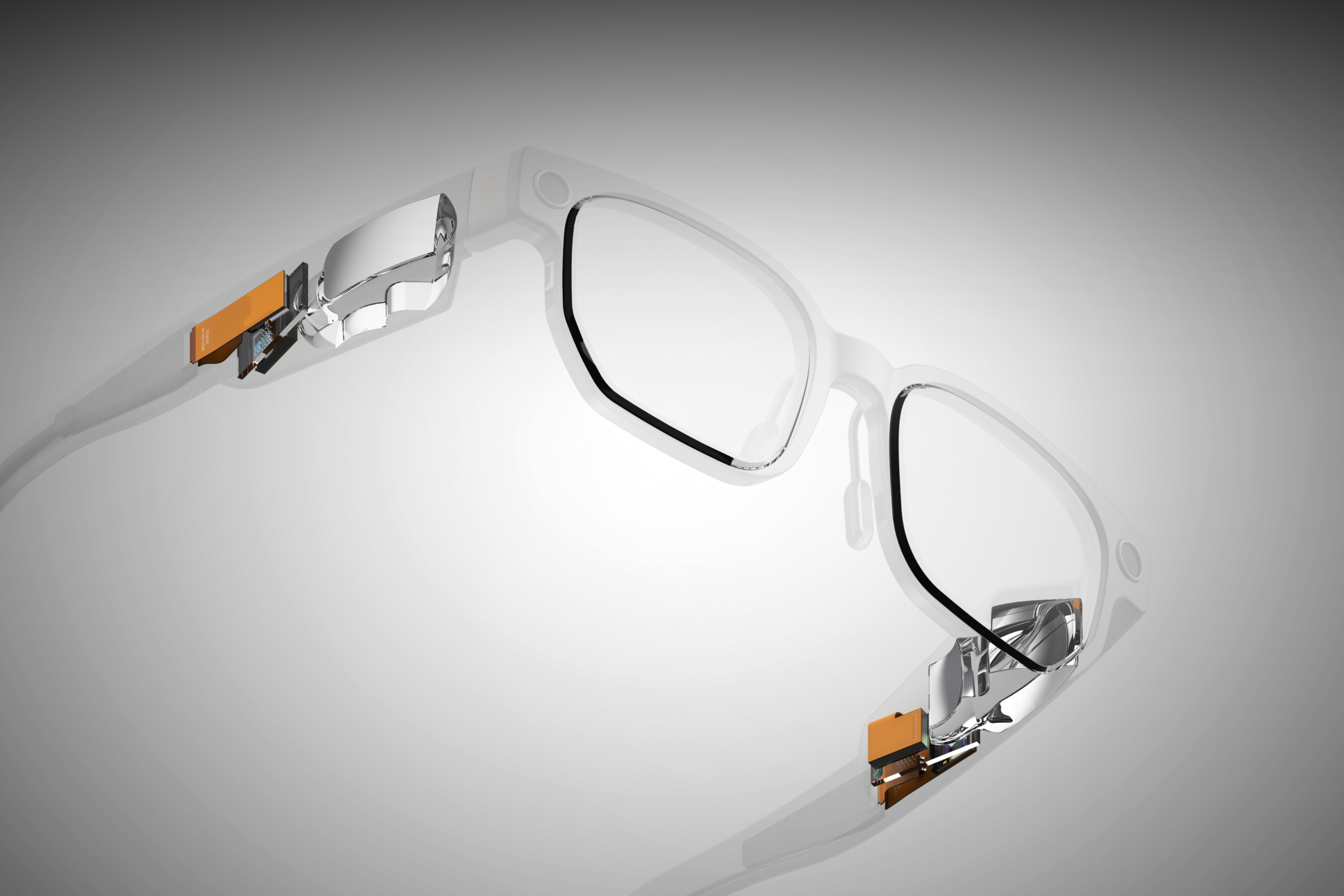

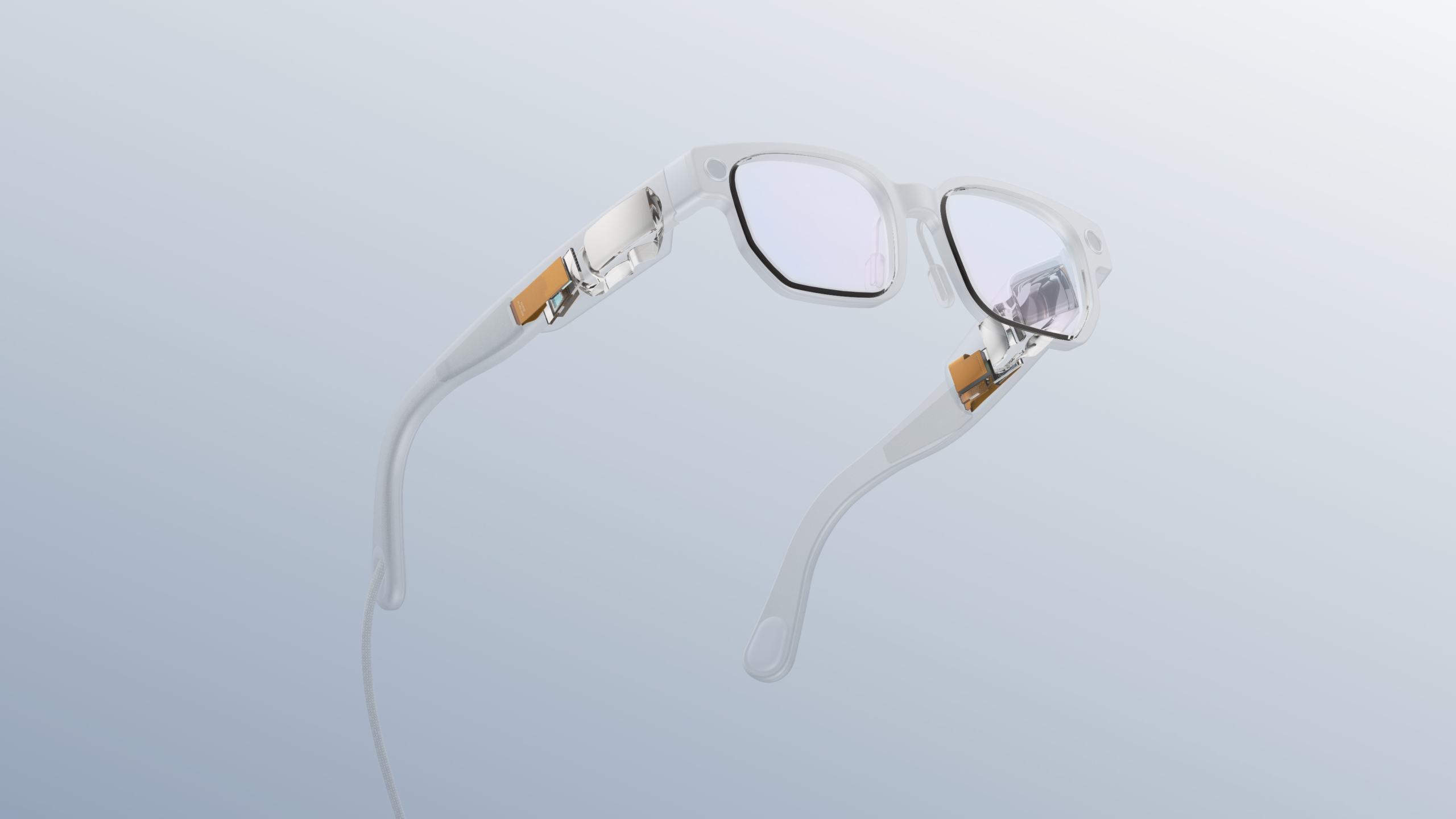

Clarity

AR glasses are the next evolutionary stage of traditional eyewear. Their primary purpose—vision correction and enhancement—must remain uncompromised. This is why our display Clarity incorporates vision care requirements and eyewear features at its core,
offering fully natural vision in Augmented Reality.

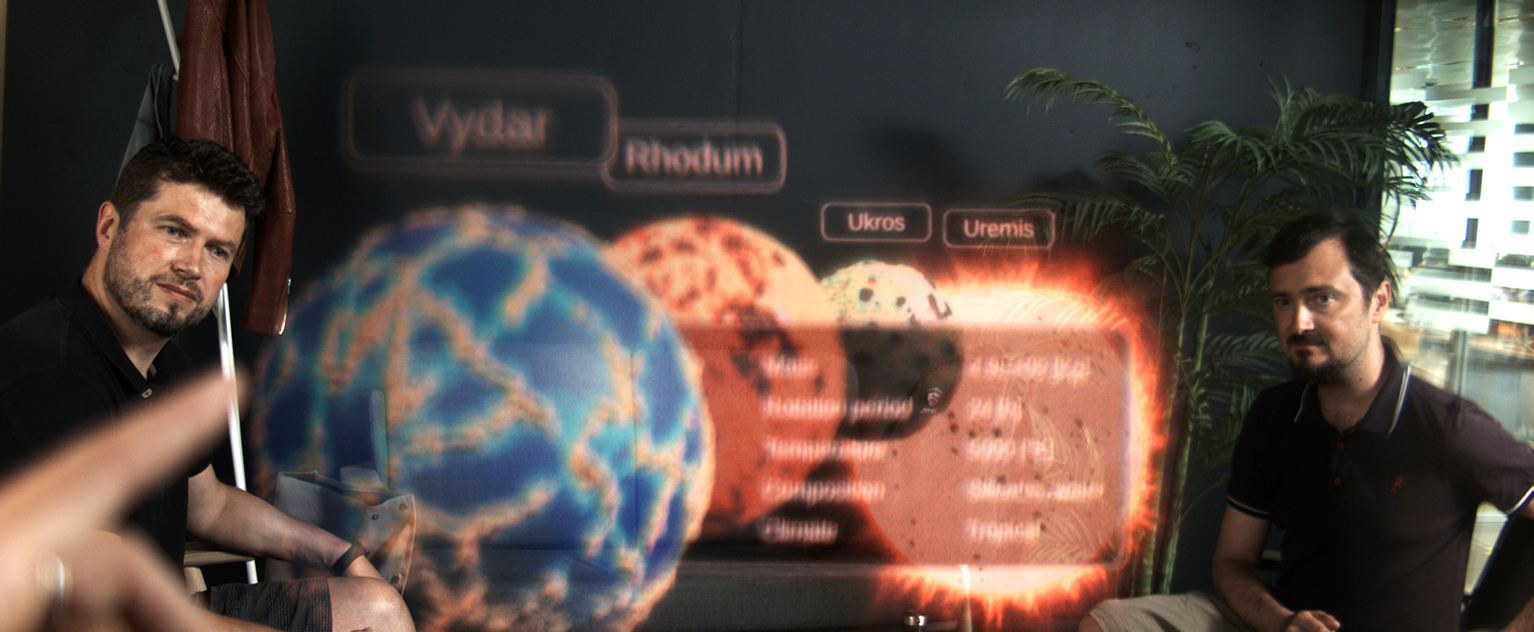

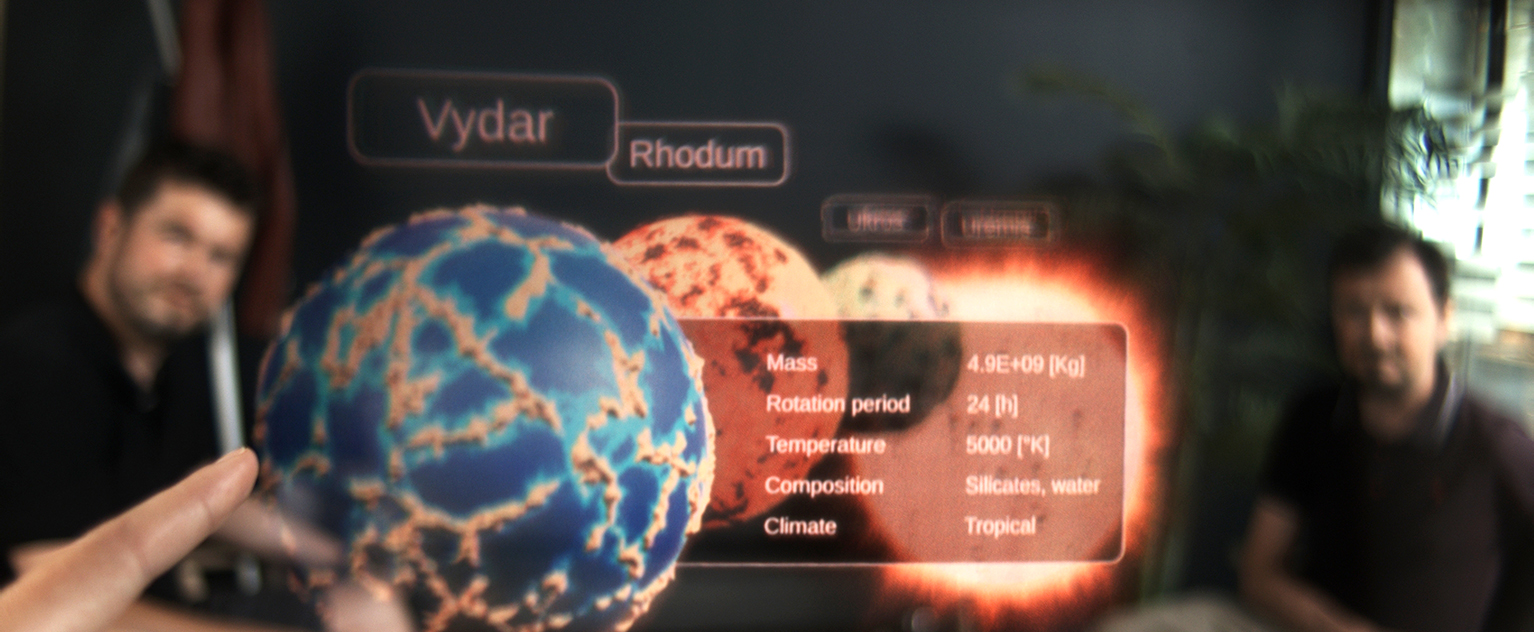

Real depth

The real world is 3D, and for a truly immersive experience, the digital world has to be as well. That’s why CREAL’s unique light-field technology projects fully 3D images, allowing digital content to blend seamlessly with the real world. Correct blending is even more crucial for interactions happening in the personal space, where direct touch and precision are key.

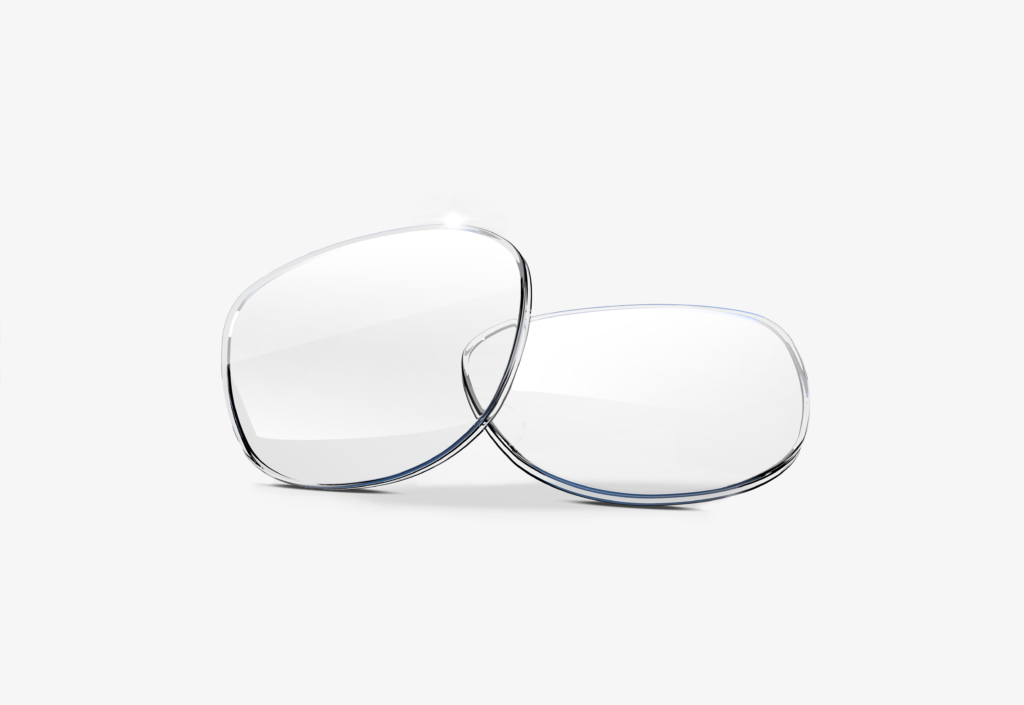

Prescription compatibility

CREAL’s technology integrates with conventional prescription lenses, delivering corrected vision of both the real and virtual worlds. By using a transparent holographic film added on top of the lens to reflect the digital light rays to the user’s eyes, CREAL ensures seamless integration of its solution into the existing eyewear manufacturing and supply chain.

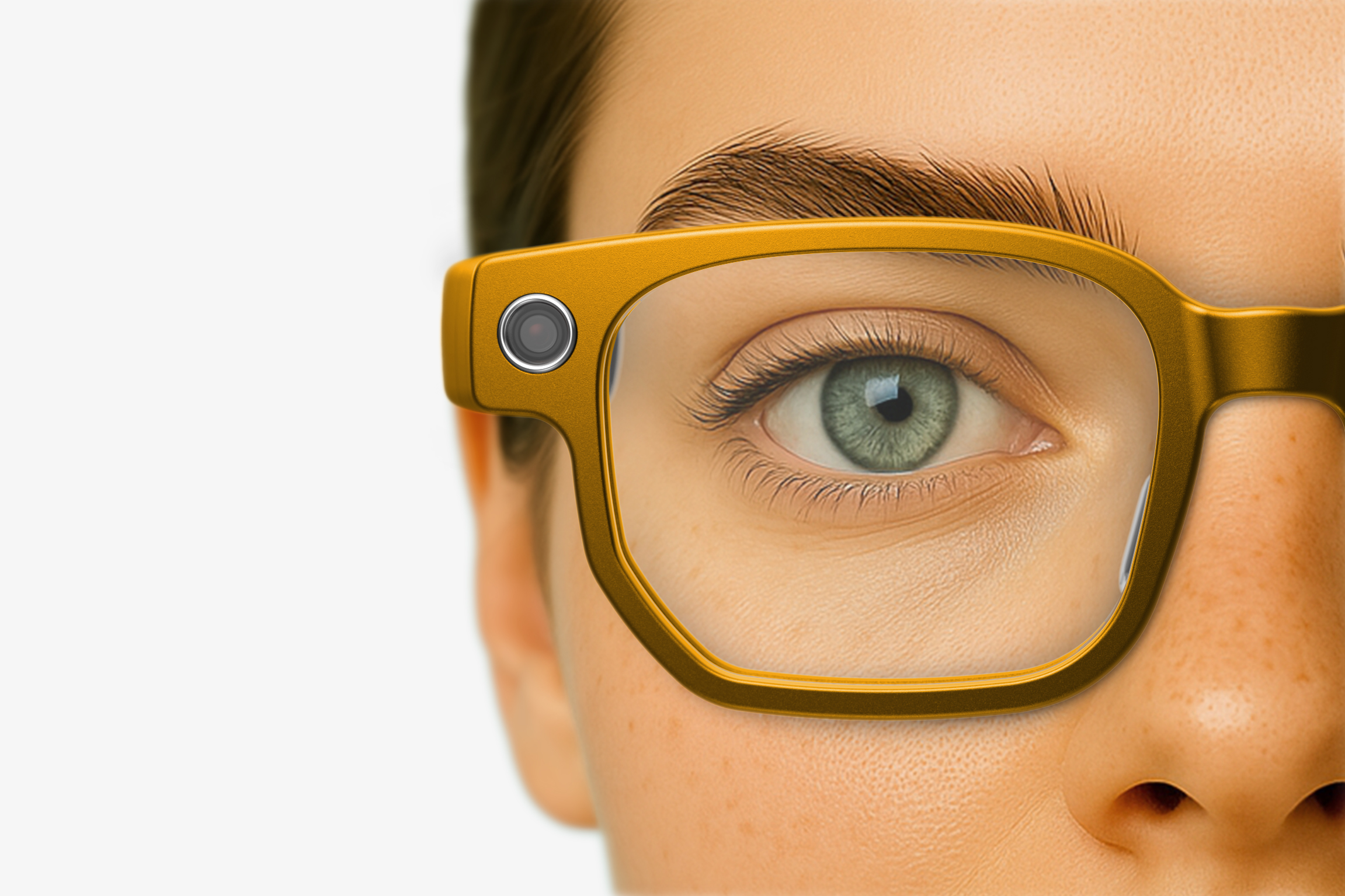

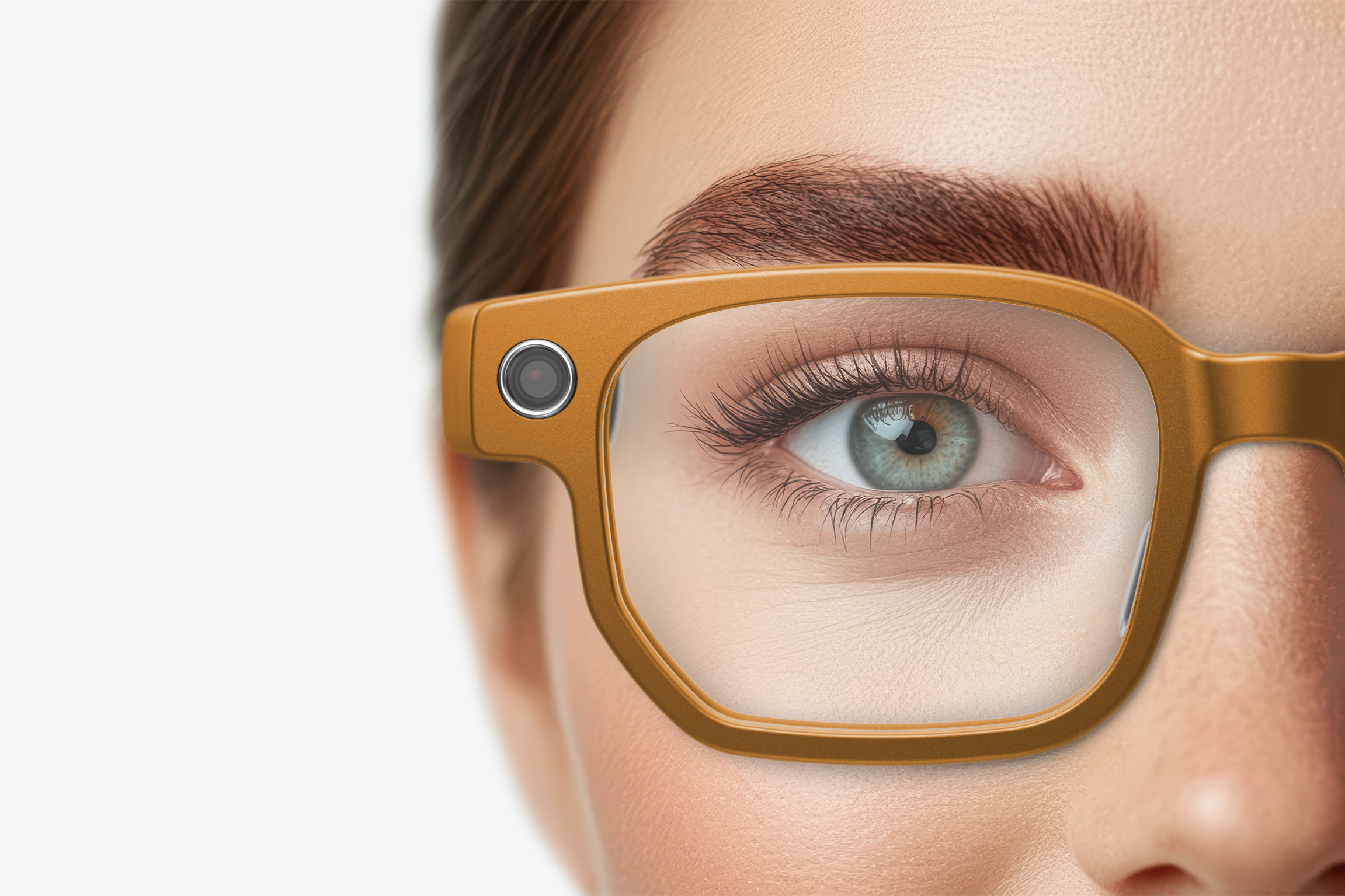

Transparent lens

CREAL’s lens ensures natural eye contact, unobstructed view, and a stylish appearance – essential for everyday acceptance of AR glasses. The transparency and minimal distracting rainbows promote social interaction, while CREAL’s display technology adapts to any lens shape for a personalized and fashionable look of the glasses frames.

Looking ahead

While our light field technology keeps improving, further miniaturization of our Clarity display and custom components integration will ultimately enable all-in-one AR glasses offering a completely natural, immersive, and contextual visual experience.

2020

Table-top demo

2021

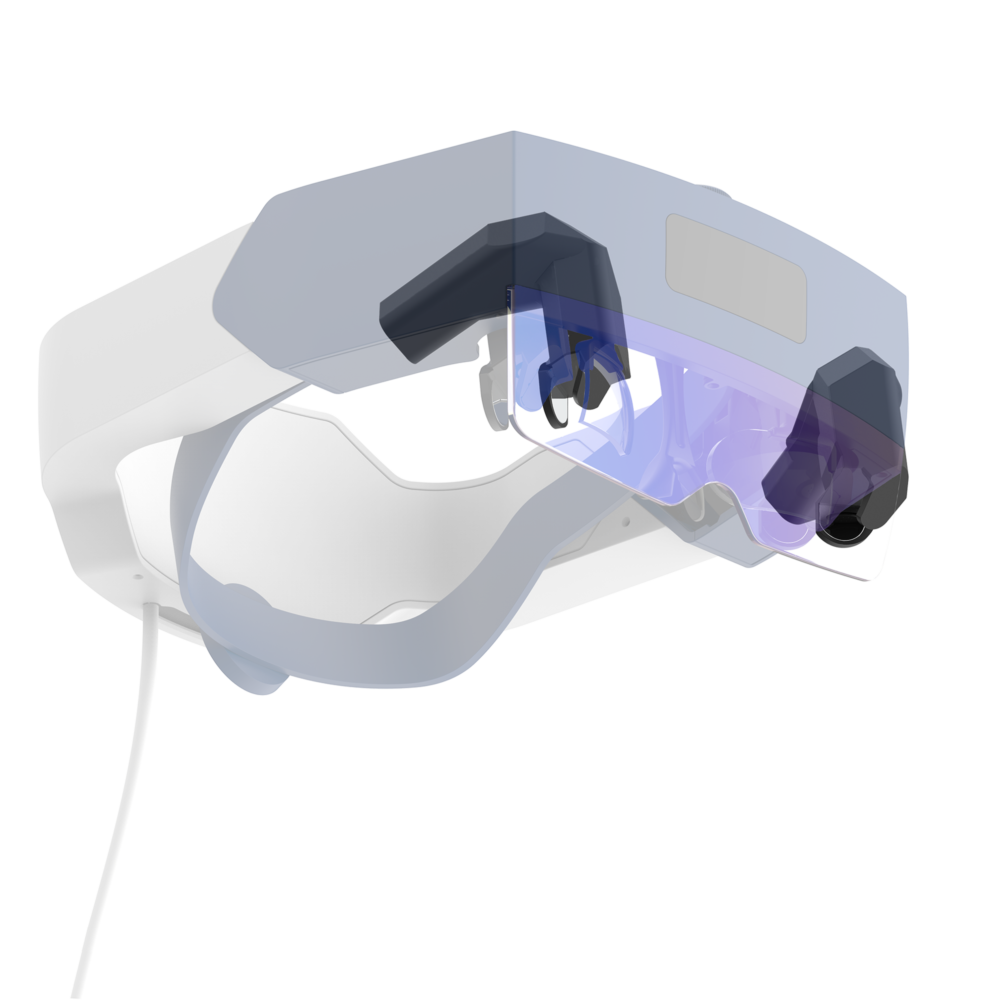

Head-mounted display demo

2025

Clarity display solution including classical prescription lenses, fit for integration
into AR glasses

2026+

Further miniaturization of the optical engine and eyebox maximization, fit for integration
into AR glasses

Clarity technical specifications

Per eye
Angular resolution (at infinity)	40 ppd
Modulator resolution	1 Mpix (1:1 ratio)
Depth resolution	Continuous¹
FoV (diagonal)	36° (path to dual FoV up to 75°)
Effective eyebox	13 mm
Exit pupil	6 mm
Eye relief	20 ± 3 mm
Colors	2 millions
Brightness	2000 nits

¹ Resolution is finite, however much higher than an eye can resolve


Contrast	1000/1
Modulator frame rate	160 Hz
Sub-frame rate	6.5 kHz
Power consumption
Light source	8 mW @500 nits (+driver)
Modulator	90 mW (+driver)
Combiner type	Holographic film
Combiner transparency	91%
Virtual image correction	Sphere, cylinder, axis

Offer

Our complete light field optical engine solution is available for testing and evaluation today.

By allowing comfortable extended interaction with virtual objects at any distance, CREAL’s light field technology can unlock the full potential of next-generation AR glasses.

For further information on CREAL’s AR technology display, engineering and support integration and more, please contact sales@creal.com
